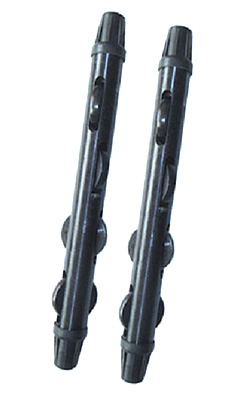

Wheeled Rod Guide reduces wear and prolong the life of sucker rods and tubing.
Wheel angles are designed to centralize rod string in tubing.
Wheels’ rolling action reduces friction, rod load, and wear.
Wheel installation and design assures smooth rolling action and easy replacement.
Standard Wheeled Rod Guide Coupling bodies are machined from cold rolled steel of 78,000lb tensile strength.
Technical Parameter
| APPLICATION | DIMENSIONS(INCH) | ||
| 5/8”ROD/2-3/8”TUBING | Diameter | Length | Length of the groove |
| 3/4ROD/2-3/8”TUBING | 1.50 | 27 | 1.80 |
| 5/8”ROD/2-7/8”TUBING | 1.50 | 27 | 1.80 |
| 3/4”ROD/2-7/8”TUBING | 1.50 | 27 | 2.25 |
| 7/8”ROD/2-7/8”TUBING | 1.50 | 27 | 2.28 |
| 1”ROD/2-7/8”TUBING | 1.625 | 27 | 2.28 |
| 3/4”ROD/3-1/2”TUBING | 2.0 | 29 | 2.28 |
| 7/8”ROD/3-12”TUBING | 1.50 | 31 | 2.75 |
| 1”ROD/3-1/2”TUBING | 1.625 | 31 | 2.75 |
* Other sizes and connections available on request
