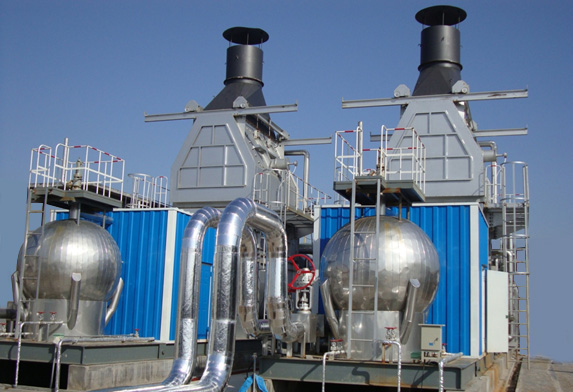

Our steam generators are designed and fabricated in accordance with the latest edition of the ASME Power Boiler Code, Section I and all applicable codes (without “S” steel seal). All electrical installations are in accordance with the latest edition of the National Electrical Code. The design, make, stuff of others parts, such as non-pressed parts, support parts, and steel structure meets China National Standards.
Steam Capacity (t/h) | 5/7/9.5/11.5/15/18/20/23/30/40/50/100 |
Working Pressure (MPa) | 9.8/10.5/12/14/17.2/21/26/30 |
Skid-mounted,truck-mounted |
Main Components
A) Combustion chamber and radiation section;
B) Convection section;
C) Transition section;
D) Heat exchanger feeding water;
E) Water-steam handling and equipment control;
F) Ignition and control system;
G) Programmable control panel;
H) Power Center;
I) Cabin covered for the burner, Control Panel and Power Center;
J) Painting and protection;
K) Insulation;
L) Exchanger water load;
M) Exchanger oil-steam;
N) Fuel heating system;
O) Steam atomization line;
P) Compressed air system for instrumentation;
Q) Structural skid;
R) Oxygen control system;
S) Quality sample cooler;
T) Fuel oil supply pump.
