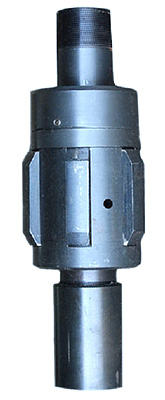

The Tubing Centralizer is designed to be run in the tubing string to keep the tubing centralized which may help in preventing premature wear of the casing and tubing.
TThe Tubing Centralizer also helps reduce the harmonics and vibrations caused by the Pump, potentially reducing premature wear on the tubing anchor and other down hole tools. The Tubing Centralizer has full tubing ID specifications and is available for a large variety of casing sizes and tubing connections.
Features
1. Stabilizes tubing and casing
2. Easily installed
3. No special installation tools required
4. Reduces work over frequency
Technical Parameter
| Specifications | Total length(mm) | Open dragblockexpansion (mm) | MinOD (mm) | Pivot ID (mm) | Connection threads |
| 51/2” | 442 | 129 | 114 | 62 | 27/8TBG |
| 7” | 456 | 168 | 138 | 62 | 27/8TBG |
| 9-5/8” | 498 | 230 | 198 | 62 | 27/8TBG |
* Other sizes and connections available on request
