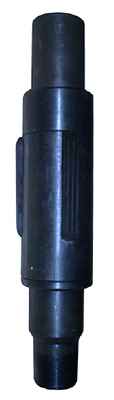

Cam Set Torque anchor


The Cam Set Torque Anchor is a cam-style torque anchor that uses an anchor/drag block combination.

The Cam Set Torque Anchor’s design ensures that regardless of the torque load from the pump, the anchor blocks will continue to engage the casing without slipping.

The higher the torque load on the Cam Set Torque Anchor, the harder the anchor blocks will bite the casing.

The proven success and reliability of the cam design has been implemented in a variety of torque anchors.

The Cam Set Torque Anchor is a reliable torque anchor that will provide secure pump placement.

The Cam Set Torque Anchor is available for all casing sizes with a variety of connection sizes and types.

Technical Parameter

Casing size (inch)Torque anchor body OD (mm)Torque anchor ID (mm)Connections (inch)
4-1/2”91.750.72-3/8”EU
5-1/2”114.362.02-7/8”EU
6-5/8”114.362.02-7/8”EU
7”144.876.03-1/2”EU

* Other sizes and connections available on request
