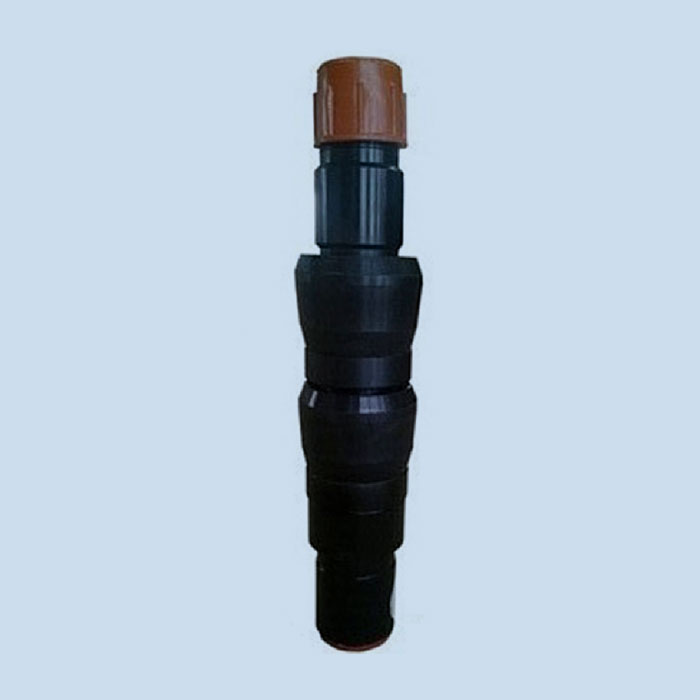

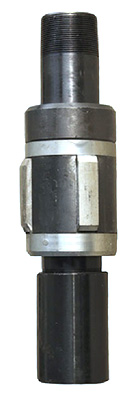

Pump stabilizer


With the trend towards larger pumps and multiple pumps being used for oil production, the significant vibrations and oscillating movement created by these pumps needs to be restricted and dissipated before it causes damage to the tubing string.

TThe spring loaded pump stabilizer is designed to be run directly above the pump to restrict the pump movement inside the casing, movement generated by the oscillating motion of the rotator inside the stator.

DDuring the pumping operation, the spring loaded contact pads will attenuate the vibrations generated by the pump and provide a soft contact between the pump and the casing. The stabilizer will prevent premature wear of the pump, tubing and casing.

Features

Easily installed

No special installation tools required

Reduces work over frequency

Technical Parameter

SpecificationsTotal length (mm)Open drag block expansion (mm)Min OD (mm)Pivot ID (mm)Connection threads
5-1/2”442129114622 7/8TBG
7”4561681386227/8 TBG
9-5/8”4982301986227/8 TBG

* Other sizes and connections available on request
