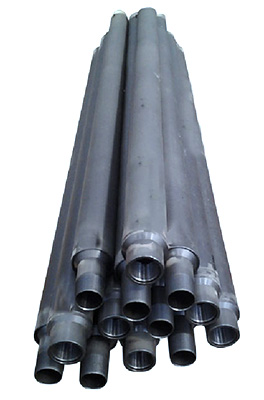

The Gas Separator was designed to provide a method of allowing gas to separate out of the solution and migrate up the annulus, preventing gas locking of the down-hole pump.
They use centrifugal forces to separate the gas from the produced liquids, before they enter the pump. Liquids will be carried through into the pump suction while the separated gases are forced to migrate up the annulus.
The Beam Gas Down-Hole Separator pump increases efficiency and production.
Features
1, Gas separation
2, Production increase
3, Prevents gas locking
4, Pump efficiency and pump rate will be increased
Technical Parameter
Type | LZX-113 | LZX-140 |
Max OD( mm) | 113 | 140 |
Max OD of cup (mm) | 132 | 165 |
Connection thread type | 27/8TBG | 27/8TBG |
Max length (mm) | 3200 | 3200 |
* Other sizes and connections available on request
